Cursors

An introduction to selecting phasor coordinates using cursors.

Import required modules, functions, and classes:

from phasorpy.color import CATEGORICAL
from phasorpy.cursor import (
    mask_from_circular_cursor,
    mask_from_elliptic_cursor,
    mask_from_polar_cursor,
    pseudo_color,
)
from phasorpy.datasets import fetch
from phasorpy.io import signal_from_lsm
from phasorpy.phasor import phasor_from_signal, phasor_threshold
from phasorpy.plot import PhasorPlot, plot_image

Open a hyperspectral dataset used throughout this tutorial:

signal = signal_from_lsm(fetch('paramecium.lsm'))
mean, real, imag = phasor_from_signal(signal, axis=0)

# remove coordinates with zero intensity
mean_thresholded, real, imag = phasor_threshold(mean, real, imag, mean_min=1)

Circular cursors

Use circular cursors to mask regions of interest in the phasor space:

cursor_real = [-0.33, 0.54]
cursor_imag = [-0.72, -0.74]
radius = [0.2, 0.22]

circular_mask = mask_from_circular_cursor(
    real, imag, cursor_real, cursor_imag, radius=radius
)

Show the circular cursors in a phasor plot:

plot = PhasorPlot(allquadrants=True, title='Circular cursors')
plot.hist2d(real, imag, cmap='Greys')
plot.cursor(
    cursor_real,
    cursor_imag,
    radius=radius,
    color=CATEGORICAL[:2],
    label=['cursor 0', 'cursor 1'],
)
plot.show()

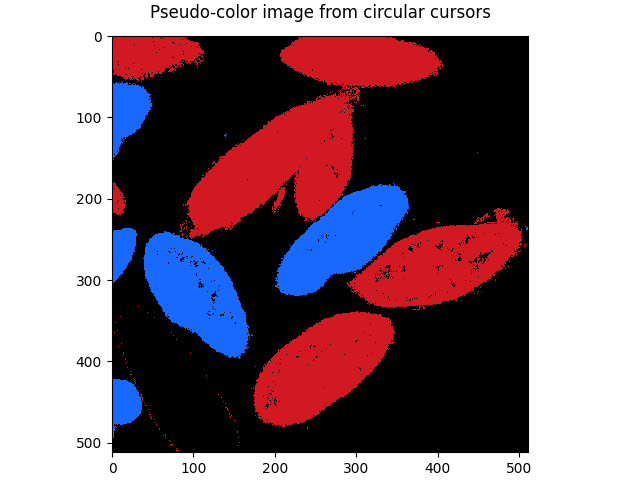

The cursor masks can be blended to produce a pseudo-colored image:

pseudo_color_image = pseudo_color(*circular_mask)

plot_image(
    pseudo_color_image, title='Pseudo-color image from circular cursors'
)

Elliptic cursors

Use elliptic cursors to mask more defined regions of interest in the phasor space:

radius = [0.1, 0.06]
radius_minor = [0.3, 0.25]

elliptic_mask = mask_from_elliptic_cursor(
    real,
    imag,
    cursor_real,
    cursor_imag,
    radius=radius,
    radius_minor=radius_minor,
)

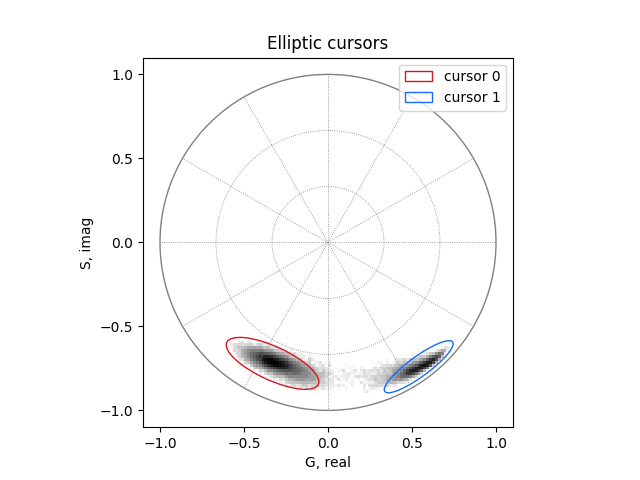

Show the elliptic cursors in a phasor plot:

plot = PhasorPlot(allquadrants=True, title='Elliptic cursors')
plot.hist2d(real, imag, cmap='Greys')
plot.cursor(
    cursor_real,
    cursor_imag,
    radius=radius,
    radius_minor=radius_minor,
    color=CATEGORICAL[:2],
    label=['cursor 0', 'cursor 1'],
)
plot.show()

The mean intensity image can be used as a base layer to overlay the masks from the elliptic cursors:

pseudo_color_image = pseudo_color(*elliptic_mask, intensity=mean)

plot_image(
    pseudo_color_image,
    title='Pseudo-color image from elliptic cursors and intensity',
)

Polar cursors

Create a mask with two ranges of phase and modulation values:

phase_min = [-2.27, -1.22]
phase_max = [-1.57, -0.70]
modulation_min = [0.7, 0.8]
modulation_max = [0.9, 1.0]

polar_mask = mask_from_polar_cursor(
    real, imag, phase_min, phase_max, modulation_min, modulation_max
)

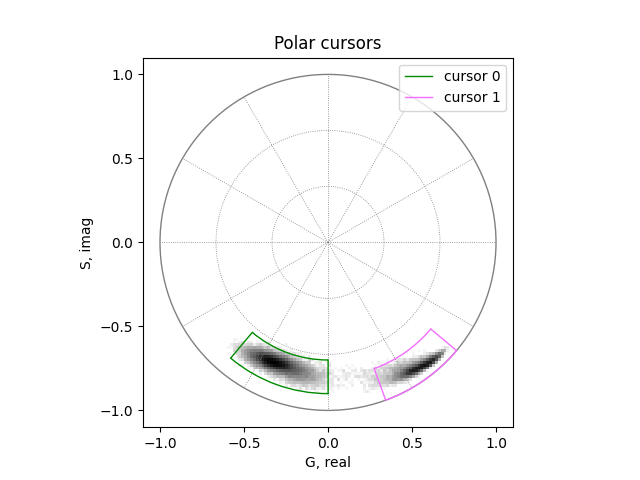

Show the polar cursors in a phasor plot:

plot = PhasorPlot(allquadrants=True, title='Polar cursors')
plot.hist2d(real, imag, cmap='Greys')
plot.polar_cursor(
    phase=phase_min,
    phase_limit=phase_max,
    modulation=modulation_min,
    modulation_limit=modulation_max,
    color=CATEGORICAL[2:4],
    label=['cursor 0', 'cursor 1'],
)
plot.show()

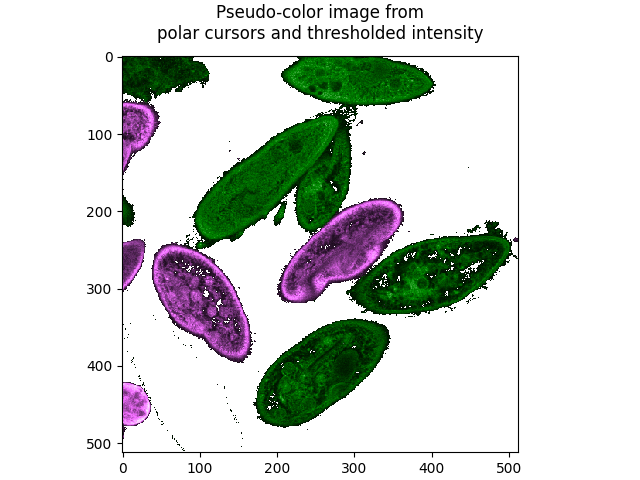

The thresholded mean intensity image can be used as a base layer to overlay the masks from the polar cursors. Values below the threshold are transparent (white):

pseudo_color_image = pseudo_color(
    *polar_mask, intensity=mean_thresholded, colors=CATEGORICAL[2:]
)

plot_image(
    pseudo_color_image,
    title='Pseudo-color image from\npolar cursors and thresholded intensity',
)

sphinx_gallery_thumbnail_number = 1 mypy: allow-untyped-defs, allow-untyped-calls mypy: disable-error-code=”arg-type”
