Multi-component fit

Spectral unmixing using multi-component analysis in phasor space.

The components in a luminescence spectrum can be unmixed if the spectra of the individual components are known. This can be achieved by solving a system of linear equations that fits the fractional contributions of the phasor coordinates of the component spectra to the phasor coordinates of the mixture spectrum. Phasor coordinates at multiple harmonics may be used to ensure the linear system is not underdetermined.

This method is demonstrated using a hyperspectral imaging dataset of cells containing five fluorescent markers as presented in:

Vallmitjana A, Lepanto P, Irigoin F, and Malacrida L. Phasor-based multi-harmonic unmixing for in-vivo hyperspectral imaging. Methods Appl Fluoresc, 11(1): 014001 (2022).

The dataset is available at https://zenodo.org/records/13625087.

The spectral unmixing of the five components is performed using phasor coordinates at two harmonics.

Import required modules, functions, and classes:

import numpy
from matplotlib import pyplot

from phasorpy.component import phasor_component_fit
from phasorpy.datasets import fetch
from phasorpy.filter import phasor_filter_median, phasor_threshold
from phasorpy.io import signal_from_lsm
from phasorpy.phasor import phasor_center, phasor_from_signal
from phasorpy.plot import PhasorPlot, plot_image, plot_signal_image

Define dataset and processing parameters:

# hyperspectral image containing all five components
samplefile = '38_Hoechst_Golgi_Mito_Lyso_CellMAsk_404_488_561_633_SP.lsm'

# hyperspectral images of individual components
components = {
    'Hoechst': 'spectral hoehst.lsm',  # filename contains spelling error
    'LysoTracker': 'spectral lyso tracker green.lsm',
    'Golgi': 'spectral golgi.lsm',
    'MitoTracker': 'spectral mito tracker.lsm',
    'CellMask': 'spectral cell mask.lsm',
}

# analysis parameters
harmonic = [1, 2]  # harmonics to use for unmixing
median_size = 5  # size of median filter window
median_repeat = 3  # number of times to apply median filter
threshold = 3  # minimum signal threshold

Individual components

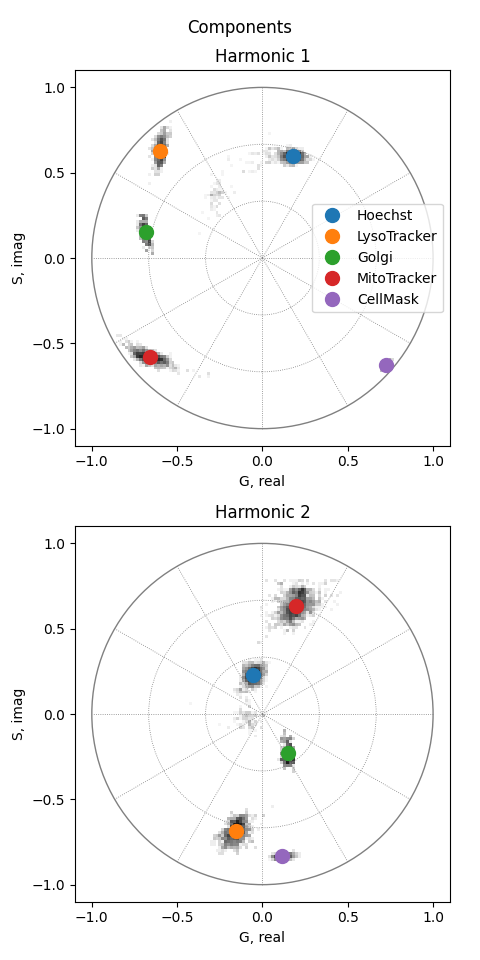

Calculate and plot phasor coordinates for each component and harmonic. For each component, the following steps are performed:

1. Load spectral data and calculate phasor coordinates

2. Apply median filtering to reduce noise

3. Apply threshold to remove low-intensity pixels

4. Calculate center coordinates using mean method

5. Plot in phasor space

num_harmonics = len(harmonic)
num_components = len(components)
component_real = numpy.zeros((num_harmonics, num_components))
component_imag = numpy.zeros((num_harmonics, num_components))
component_mean = []

fig, axs = pyplot.subplots(
    num_harmonics, 1, figsize=(4.8, num_harmonics * 4.8)
)
plots = [
    PhasorPlot(ax=axs[i], allquadrants=True, title=f'Harmonic {harmonic[i]}')
    for i in range(num_harmonics)
]
fig.suptitle('Components')

for i, (name, filename) in enumerate(components.items()):
    mean, real, imag = phasor_from_signal(
        signal_from_lsm(fetch(filename)), axis=0, harmonic=harmonic
    )
    mean, real, imag = phasor_filter_median(
        mean, real, imag, size=median_size, repeat=median_repeat
    )
    mean, real, imag = phasor_threshold(mean, real, imag, mean_min=threshold)
    mean, center_real, center_imag = phasor_center(
        mean, real, imag, method='mean'
    )
    component_mean.append(mean)
    component_real[:, i] = center_real
    component_imag[:, i] = center_imag

    for j, plot in enumerate(plots):
        plot.hist2d(real[j], imag[j], cmap='Greys')
        plot.plot(center_real[j], center_imag[j], label=name, markersize=10)
        plot.legend(loc='right').set_visible(j == 0)
fig.tight_layout()
fig.show()

Component mixture

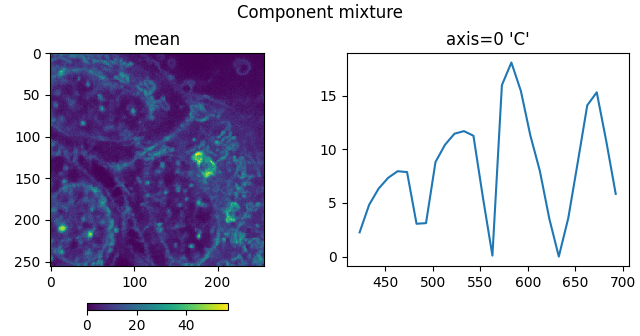

Read the mixture sample image containing all markers and visualize the raw spectral data:

signal = signal_from_lsm(fetch(samplefile))

plot_signal_image(signal, title='Component mixture')

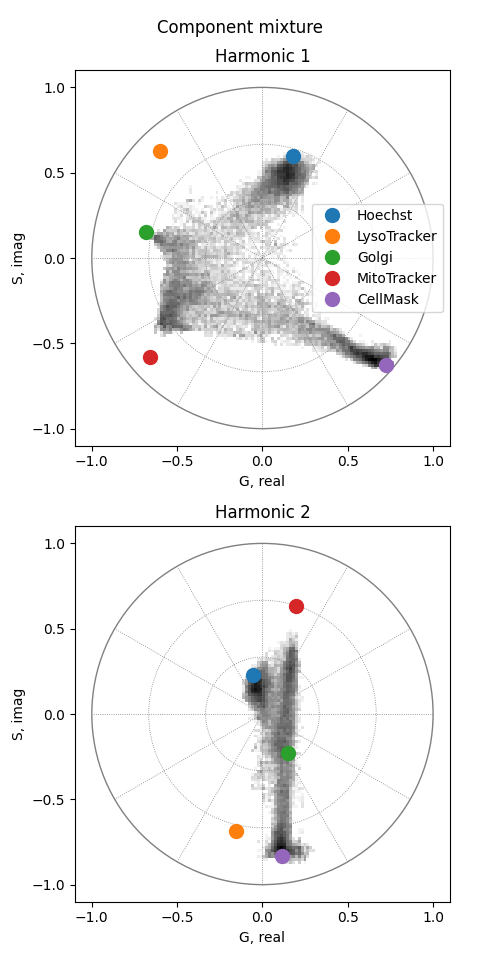

Calculate and plot phasor coordinates of the component mixture:

mean, real, imag = phasor_from_signal(signal, axis=0, harmonic=harmonic)
mean, real, imag = phasor_filter_median(
    mean, real, imag, size=median_size, repeat=median_repeat
)

# optionally apply a threshold to remove low-intensity pixels
# mean, real, imag = phasor_threshold(mean, real, imag, mean_min=threshold)

fig, axs = pyplot.subplots(
    num_harmonics, 1, figsize=(4.8, num_harmonics * 4.8)
)
fig.suptitle('Component mixture')

for i in range(num_harmonics):
    plot = PhasorPlot(
        ax=axs[i], allquadrants=True, title=f'Harmonic {harmonic[i]}'
    )
    plot.hist2d(real[i], imag[i], cmap='Greys')
    for j, name in enumerate(components):
        plot.plot(
            component_real[i, j],
            component_imag[i, j],
            label=name,
            markersize=10,
        )
    plot.legend(loc='right').set_visible(i == 0)
fig.tight_layout()
fig.show()

Fractions of components in mixture

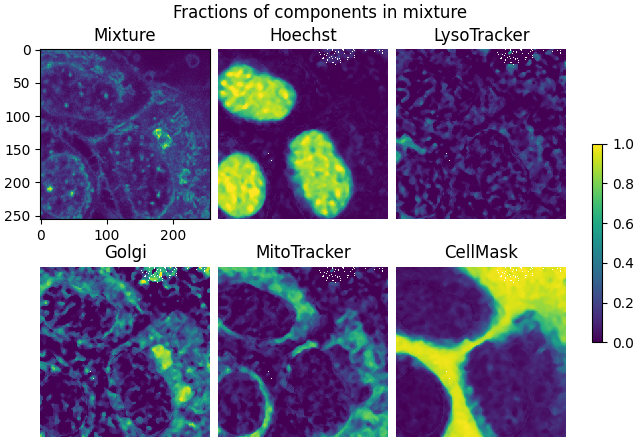

Fit the fractional contribution of each component to the phasor coordinates at each pixel of the mixture and plot the component fraction images:

fractions = phasor_component_fit(
    mean, real, imag, component_real, component_imag
)

plot_image(
    mean / mean.max(),
    *fractions,
    vmin=0,
    vmax=1,
    labels=['Mixture', *list(components.keys())],
    title='Fractions of components in mixture',
)

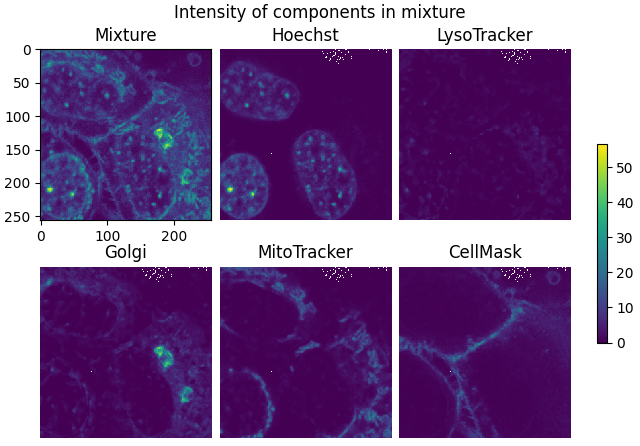

Plot the intensity of each component in the mixture:

plot_image(
    mean,
    *(f * mean for f in fractions),
    vmin=0,
    vmax=mean.max(),
    labels=['Mixture', *list(components.keys())],
    title='Intensity of components in mixture',
)

Validate component fit

Verify that the experimental phasor coordinates can be approximately reconstructed from the component coordinates and fitted fractions:

from phasorpy.component import phasor_from_component

restored_real, restored_imag = phasor_from_component(
    component_real[0], component_imag[0], fractions, axis=0
)
assert numpy.allclose(restored_real, real[0], atol=1e-3, equal_nan=True)
assert numpy.allclose(restored_imag, imag[0], atol=1e-3, equal_nan=True)
